Overview

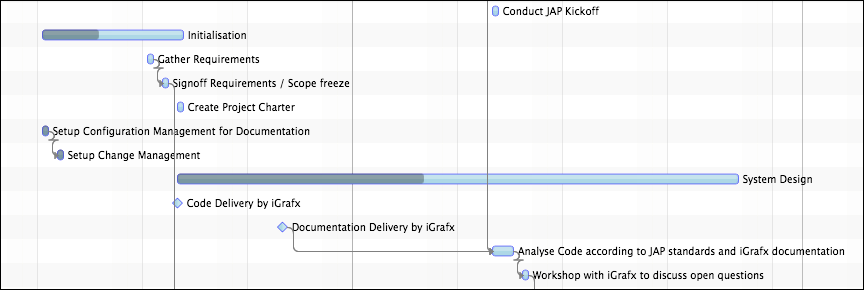

The graphics view control is responsible for the rendering of activities and system layers, editing of activities, event notifications, hit detection, system layer management, and for context menu support.

Rendering

The graphics control uses the Canvas node and its direct drawing API (as opposed to the deferred rendering done via the Scenegraph). This is due to the large data volumes often displayed by Gantt charts. Directly rendering an activity into a bitmap is much faster than updating the scene graph, reapplying CSS styling, laying out nodes. The graphics control of FlexGanttFX uses a pluggable renderer architecture where renderer instances can be mapped to activity types, very similar to the way Swing was doing it for list and table cell renderers. The following code is an example of how to register a custom renderer for a given “Flight” activity and layout type. Please note that the graphics view is capable of displaying activities in three different layouts, hence the layout type must also be passed to the method.

GanttChart ganttChart = new GanttChart();
GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setActivityRenderer(
    Flight.class, // the type of activities that will be rendered
    GanttLayout.class, // the type of layout where the renderer will be used
    new FlightRenderer(graphics)); // the actual renderer instance

System Layers

Activities are not the only thing that needs to be displayed. There are also the current time (“now”), grid lines, inner lines, agenda / chart lines, and so on. All of these things are rendered by so-called system layers. The graphics control manages two lists of these layers. One list for background layers and one list for foreground layers.

Background layers are drawn “behind” activities, foreground layers are drawn “on top of” activities. Each one of these lists is already pre-populated but can be changed by the application. For more information on the available system layers, please refer to their individual documentation.

System layers can be turned on and off directly via the API of the graphics control. There is a boolean property for each layer. The value of these properties can be set by calling the methods that follow the pattern setShowXYZLayer. System layers that are controlled like this will appear and disappear with a fade in / fade out animation, while calling SystemLayer.setVisible(boolean) directly will be without any animation.

Editing

Two different callbacks are used to control the editing behavior of activities. The first maps a mouse event / mouse location to a GraphicsBase.EditMode and can be registered by calling setEditModeCallback(Class, Class, Callback). The second callback is used to determine whether a given editing mode / operation can be applied to an activity at all. This callback is registered by calling setActivityEditingCallback(Class, Callback). Most applications will only need to work with the second callback and keep the defaults for the edit mode locations (for example, right edge used to change end time, left edge used to change start time).

Events

Events of the type ActivityEvent are sent whenever the user performs a change inside the graphics view. Applications that want to receive these events can either call any one of the setOnActivityXYZEvent() methods or by adding an event handler directly via addEventHandler(ActionEvent.ACTIVITY_XYZ, ...). Events are fired while the change is being performed and once it has been completed. For this the ActivityEvent class lists event types with the two different endings CHANGING and CHANGED.

Hit-Point Detection

The graphics view provides support for finding out information about a given position. Activities can be found by calling getActivityBoundsAt(double, double) or getActivityRefAt(double, double). The time at an x-coordinate can be looked up by calling getTimeAt(double). The opposite direction is also available: a location can be found for a given time by calling getLocation(Instant).

Context Menu

Context menus can be set on any control in JavaFX, but due to the complexity of the graphics view, it does make sense to provide additional built-in support. By calling setContextMenuCallback(Callback) a context menu specific callback can be registered with the graphics control. This callback will be invoked when the user triggers the context menu. A callback parameter object (see GraphicsBase.ContextMenuParameter) will be passed to the callback already populated with the most important values that might be relevant for building a context menu.

System Layers

System layers are used in the background and foreground of each row. A background layer gets drawn before the activities are drawn, while a foreground layer gets drawn after the activities are drawn. Each layer is specialized in drawing one type of information: current time, selected time intervals, grid lines, and so on. The graphics view manages the layers in two lists and provides convenience methods to easily look them up.

• getBackgroundSystemLayers() – returns the complete list of system layers used in the background of activities.
• getForegroundSystemLayers() – returns the complete list of system layers used in the foreground of activities.
• getBackgroundSystemLayer(Class) – returns the system background layer instance of the given type.
• getForegroundSystemLayer(Class) – returns the system foreground layer instance of the given type.
• getSystemLayer(Class) – returns the system layer instance of the given type, no matter if it is a foreground or background layer.

Layers can be added to or removed from the graphics view by adding them to or removing them from the foreground or background list. Once you have looked up a layer, you can set its properties to customize its appearance. The most common properties are used for line colors and widths.

System Layer Example

GraphicsBase<?> graphics = ganttChart.getGraphics();
NowLineLayer nowLayer = graphics.getBackgroundSystemLayer(NowLineLayer .class);
nowLayer.setStroke(Color.ORANGE);
nowLayer.setLineWidth(3); // thick line

System Layers vs. Model Layers

Please note that system layers are not related in any way to model layers. A system layer is basically a renderer for some graphical feedback, while a model layer is used for grouping activities.

Available Background Layers

The following table lists all background layers that are shipping with FlexGanttFX.

Available Foreground Layers

The following table lists all foreground layers that are shipping with FlexGanttFX.

Drag And Drop

The heavyweight and platform-provided drag and drop (DnD) facilities are used in FlexGanttFX only to move an activity from one row and to another. All other editing operations are handled with standard mouse events (pressed, dragged). The new row might actually be a row in another Gantt chart. The default way to initiate a DnD is to move the mouse cursor into the center of an activity while pressing the SHIFT key. This will change the cursor to the DnD cursor if this kind of editing operation is supported by the targeted activity (see also “Activity Editing”). The DnD will terminate once the user lets go of the mouse button.

Events

Just like all the other editing operations, DnD will also trigger several events during its execution. The following list describes them:

• DRAG_STARTED, DRAG_ONGOING, DRAG_FINISHED - these event types are fired if the editing operation is EditMode.DRAGGING.
• VERTICAL_DRAG_STARTED, VERTICAL_DRAG_ONGOING, VERTICAL_DRAG_FINISHED - these event types are fired if the editing operation is EditMode.DRAGGING_VERTICAL.

The edit mode DRAGGING_HORIZONTAL does not use platform DnD. Hence the event types HORIZONTAL_DRAG_STARTED / ONGOING / FINISHED are not listed above.

Drag And Drop Info Property

A special property called dragAndDropInfo is available on the graphics view to monitor the DnD operation. This is in addition to the standard event types mentioned above. The info stored in this property provides the application with the most important information required about the dragged activity.

Feedback Types

FlexGanttFX provides different ways of visualizing the DnD feedback. The enumerator DragAndDropFeedback lists the following values which an be set by calling the setDragAndDropFeedback() method on GraphicsBase.

Drag Image Provider

If the DnD feedback type has been set to NATIVE then it is possible to pass a custom image for the drag operation. This can be achieved by setting a drag image provider on GraphicsBase by calling setDragImageProvider(). This method accepts a callback lambda expression. The input for the callback will be an ActivityRef and the output will be an image.

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setDragImageProvider(ref -> createImage(ref));

The default image is a snapshot of the activity at the moment when the drag started.

Drop Layer Provider

Drag and drop operations can be performed between two different Gantt charts, with each chart managing its own list of layers. By default, a dropped activity will be placed on the same layer as the one where it was dragged from. But if the target Gantt chart does not contain this layer, then the application needs to be told which layer to use as the new home for the activity. This can be achieved by setting a “drop layer provider” callback on the target instance of GraphicsBase.

GraphicsBase<?> graphics = targetGanttChart.getGraphics();
targetGraphics.setDropLayerProvider(info -> targetLayer); // info is of type DragAndDropInfo

The default implementation of this callback looks like this:

info -> info.getActivityRef().getLayer(); // use same layer as before

If the drop layer provider returns no layer or if the returned layer is not a layer added to the target Gantt chart / graphics, then we will see messages like this.

• “the drop layer provider has returned no layer for the dropped activity”
• “the drop layer provider has returned a layer that does not exist in the Gantt chart”

Event Handling

The graphics view fires standard JavaFX events to let applications react to change. The concepts used for event handler support in FlexGanttFX are the same as the ones found in the standard JavaFX controls.

Activity Events

Activity events are fired whenever the user deletes or edits an activity. To receive an activity event, register an event handler with the graphics view via one of the convenience methods.

Single Activity Event Handler

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setOnActivityChangeFinished(evt ->
            System.out.println("An activity has changed"));

If you need to register more than one handler for a specific event type, then use this approach:

Multiple Activity Event Handlers

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.addEventHandler(ActivityEvent.ACTIVITY_CHANGE_FINISHED,
                            evt -> System.out.println("Listener 1"));
graphics.addEventHandler(ActivityEvent.ACTIVITY_CHANGE_FINISHED,
                            evt -> System.out.println("Listener 2"));

The following tables list all supported activity event types and the convenience setter methods of the graphics view. The methods are used to quickly register an event handler for the various event types.

Activity Events Hierarchy

The event types defined in the ActivityEvent class are defining an event hierarchy. All events are input events (InputEvent.ANY) and they change the activity. Some of them get fired when the user starts the change, some while the change is ongoing, and some when the change is finished.

• InputEvent.ANY
  • ACTIVITY_CHANGE
    • ACTIVITY_DELETED
    • ACTIVITY_CHANGE_STARTED // All event types that signal “start”
      • CHART_VALUE_CHANGE_STARTED
        • CHART_HIGH_VALUE_CHANGE_STARTED
        • CHART_LOW_VALUE_CHANGE_STARTED
      • DRAG_STARTED
      • END_TIME_CHANGE_STARTED
      • HORIZONTAL_DRAG_STARTED
      • PERCENTAGE_CHANGE_STARTED
      • START_TIME_CHANGE_STARTED
      • VERTICAL_DRAG_STARTED
    • ACTIVITY_CHANGE_ONGOING // All event types that signal “ongoing”
      • CHART_VALUE_CHANGE_ONGOING
        • CHART_HIGH_VALUE_CHANGE_ONGOING
        • CHART_LOW_VALUE_CHANGE_ONGOING
      • DRAG_ONGOING
      • END_TIME_CHANGE_ONGOING
      • HORIZONTAL_DRAG_ONGOING
      • PERCENTAGE_CHANGE_ONGOING
      • START_TIME_CHANGE_ONGOING
      • VERTICAL_DRAG_ONGOING
    • ACTIVITY_CHANGE_FINISHED // All event types that signal “finished”
      • CHART_VALUE_CHANGE_FINISHED
        • CHART_HIGH_VALUE_CHANGE_FINISHED
        • CHART_LOW_VALUE_CHANGE_FINISHED
      • DRAG_FINISHED
      • END_TIME_CHANGE_FINISHED
      • HORIZONTAL_DRAG_FINISHED
      • PERCENTAGE_CHANGE_FINISHED
      • START_TIME_CHANGE_FINISHED
      • VERTICAL_DRAG_FINISHED

Activity Event Properties

Applications are obviously interested in the attributes of an activity. Not only the new values of these attributes (for example the new start time) but also the old values (start time before the change). The new values are already available on the activity as they are being set while the user performs the change. The old values are stored on the event object. The following table lists the methods on ActivityEvent to retrieve these values.

Lasso Events

The user can use a lasso to select activities. Events are fired when this happens. To receive a lasso event simply register an event handler with the graphics view via one of the convenience methods.

Singe Lasso Event Handler

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setOnLassoFinished(evt -> System.out.println("The lasso was used"));

If you need to register more than one handler for a specific event type then use this approach:

Multiple Lasso Event Handlers

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.addEventHandler(LassoEvent.SELECTION_FINISHED,
                            evt -> System.out.println("Listener 1"));
graphics.addEventHandler(LassoEvent.SELECTION_FINISHED,
                            evt -> System.out.println("Listener 2"));

The following table lists the event types and the convenience setter methods of the graphics view.

Lasso Event Hierarchy

The event types defined in the LassoEvent class are defining an event hierarchy. All events are input events (InputEvent.ANY).

* InputEvent.ANY
    * LassoEvent.ALL
        * LassoEvent.SELECTION_STARTED
        * LassoEvent.SELECTION_ONGOING
        * LassoEvent.SELECTION_FINISHED

Lasso Info

The lasso automatically performs selections of activities but sometimes we might want to know more about the exact nature of this selection or we want to use the lasso for another use case (e.g. for creating new activities). For this reason instances of LassoEvent also provide an object of type LassoInfo, which carries many attributes that the application can use to react accordingly. The lasso information can be retrieved by calling LassoEvent.getInfo(). The following table lists the attributes of LassoInfo.

Links / Further Reading

Oracle JavaFX documentation Event handling examples

Activity Editing

Two different callbacks on the graphics view are used to control the editing behaviour of activities. The first maps a mouse event / mouse location to an editing mode. The second callback is used to determine whether a given editing mode / operation can be applied to an activity at all. Most applications will only need to work with the second callback and keep the defaults for the edit mode locations (for example: right edge used to change end time, left edge used to change start time). The enum GraphicsBase.EditMode lists all available editing operations that can be performed on an activity.

Edit Mode Callback

The edit mode callback is used to determine the edit mode at the given mouse location. Instances of this callback can be registered via the GraphicsBase.setEditModeCallback() method which maps the callback to a combination of activity type and layout type.

public final void setEditModeCallback(
    Class<? extends MutableActivity> activityType,
    Class<? extends Layout> layoutType,
    Callback<EditModeCallbackParameter, EditMode> callback);

Edit Mode Callback Parameter

The parameter object passed to the edit mode callback is of type EditModeCallbackParameter and contains the following information:

Edit Mode Callback Example

The following is a simple example of an editing mode callback.

public class MyEditModeCallback implements Callback<EditModeCallbackParameter, EditMode> {

    public EditMode call(EditModeCallbackParameter param) {
        MouseEvent event = param.getMouseEvent();
        ActivityBounds bounds = param.getActivityBounds();

        /*
         * If the mouse cursor is touching the left edge of the activity
         * then begin a change of the start time of the activity.
         */
        if (event.getX() - bounds.getMinX() < 5) {
            return EditMode.CHANGE_START_TIME;
        }

        return EditMode.NONE;
    }

This callback can now be registered like this:

GraphicsBase<?> graphics = ganttChart.getGraphics();
    graphics.setEditModeCallback(
    ActivityBase.class,
    GanttLayout.class,
    new MyEditModeCallback());

We could have used a lambda expression for the entire callback instance but decided against it in favor of verbosity.

Editing Callback

The editing callback is used to determine if a specific edit mode is currently usable for a given activity. Instances of this callback can be registered via the GraphicsBase.setActivityEditingCallback() method which maps the callback to an activity type.

public final void setActivityEditingCallback(
    Class<? extends MutableActivity> activityType,
    Callback<EditingCallbackParameter, Boolean> callback);

Editing Callback Parameter

The parameter object passed to the editing callback is of type EditingCallbackParameter and contains the following information:

Editing Callback Example

The following is a simple example of an editing callback.

public class MyEditingCallback implements Callback<EditingCallbackParameter, Boolean> {

    public Boolean call(EditingCallbackParameter param) {
        ActivityRef ref = param.getActivityRef();
        Activity activity = ref.getActivity();

        /*
         * Only allow editing for activities that that have not
         * started, yet.
         */
        if (activity.getStartTime().isAfter(Instant.now())) {

            /*
             * Only allow changes to the start and end time
             * of the activity.
             */
            switch (param.getEditMode()) {
                case CHANGE_START_TIME:
                case CHANGE_END_TIME:
                    return true;
                default:
                    return false;
            }
          }

        return false;
    }
}

This callback can now be registered like this:

GraphicsBase<?> graphics = ganttChart.getGraphics();
    graphics.setActivityEditingCallback(
    ActivityBase.class,
    new MyEditingCallback());

Row Editing

The graphics view not only supports editing activities but also rows. If a row gets edited the entire row will be flipped around and additional controls will become visible on the “back” of the row. If the back of the row requires more space (height) than the front of the row then the height will be automatically adjusted. The following table lists the methods that are related to row editing:

Row Editor Factory

The row editor factory is used to create the controls for a given row at the moment when the user requests that the row will be edited. The factory is a callback method that gets called with a GraphicsBase.RowEditorParameter object. This parameter object stores some fields that can be useful for creating the editor controls and also a method for stopping the row editing.

A row editor factory might look like this:

public class MyRowEditorFactory implements Callback<RowEditorParameter<R>, Node> {

    public Node call(RowEditorParameter<R> param) {
        VBox box = new VBox();

        /*
         * Bind the text property of the textfield to the name
         * property of the row. This allows us to change the name
         * of the row.
         */
        TextField nameField = new TextField();
        Bindings.bindBidirectional(param.getRow().nameProperty(),
                nameField.textProperty());

        /*
         * A close button to invoke the stopEditing() method
         * on the parameter object.
         */
        Button closeButton = new Button("Close");
        closeButton.setOnAction(evt -> param.stopEditing());
        box.getChildren().addAll(nameField, closeButton);

        /*
         * Return the vbox node.
         */
        return box;
    }
}

Row editors can be registered like this:

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setRowEditorFactory(new MyRowEditorFactory());

Row Controls Factory

To trigger row editing the user interface needs to provide some kind of controls. This can be done in many ways, for example by the help of a context menu on a row. Another way is to use the built-in support for so-called “row controls”. These controls appear / disappear every time the mouse cursor enters / exists a row. They are created by a callback implementation. This callback receives a parameter object of type GraphicsBase.RowControlsParameter. The following table lists the fields of this type.

Example 1

A possible implementation of this callback can look like this:

public class MyRowControlsFactory extends StackPane
        implements Callback<RowControlsParameter, Node> {

    private Button button;

    public MyRowControlsFactory() {

        /*
         * Important: let mouse events pass through.
         */
        setMouseTransparent(true);
        button = new Button("Press Me");
        getChildren().add(button);
    }

    /*
     * Reuse the button. Simply exchange the action that will
     * happen when the user presses on it.
     */
    public Node call(RowControlsParameter param) {
       button.setOnAction(evt ->
            System.out.println("Pressed on row " +
                    param.getRow().getName());
        return this;
    }

Please take notice that this factory is a Node object and returns itself every time the call() method gets invoked. Only the action of the button gets replaced with each inocation. This makes perfect sense as row controls are always only shown for one row at a time (as opposed to row editors where several of them can be in use at the same time).

The callback can be registered like this:

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setRowControlsFactory(new MyRowControlsFactory());

Example 2

The following is the code of the RowControls class in the FlexGanttFX “Extras” project. It adds a simple “Edit” button to the row. When clicked it will show the row editor controls on the back on the row.

package com.flexganttfx.extras;


import javafx.geometry.Pos;
import javafx.scene.Node;
import javafx.scene.control.Button;
import javafx.scene.layout.HBox;
import javafx.util.Callback;
import com.flexganttfx.model.Row;
import com.flexganttfx.view.graphics.GraphicsBase.RowControlsParameter;

public class RowControls<R extends Row<?, ?, ?>> extends HBox implements
        Callback<RowControlsParameter<R>, Node> {


    private Button editButton;

    public RowControls() {
        setPickOnBounds(false);
        setMinSize(0, 0);
        setAlignment(Pos.TOP_RIGHT);
        setFillHeight(true);
        editButton = new Button("EDIT");
        editButton.getStyleClass().add("row-controls-button");
        getChildren().add(editButton);
    }

    @Override
    public Node call(RowControlsParameter<R> param) {
        editButton.setOnAction(evt -> param.getGraphics().startRowEditing(
                param.getRow()));
        return this;
    }
}

The matching CSS for the button is defined like this:

/*
 * Row controls button are shown when the mouse hovers over a row that can be
 * edited (flipped around).
 */
.row-controls-button {
  -fx-padding: 5 9 7 7;
  -fx-background-insets: 0 4 2 2;
  -fx-background-color: rgba(0,0,0,.5);
  -fx-background-radius: 0;
  -fx-text-fill: white;
  -fx-font-size: 8;
  -fx-font-weight: bold;
}

.row-controls-button:hover,
.row-controls-button:focused {
  -fx-padding: 5 9 7 7;
  -fx-background-insets: 0 4 2 2;
  -fx-background-color: rgba(0,0,0,.6);
  -fx-background-radius: 0;
  -fx-text-fill: white;
  -fx-font-size: 8;
  -fx-font-weight: bold;
}

.row-controls-button:pressed,
.row-controls-button:selected {
  -fx-background-color: rgba(0,0,0,.7);
  -fx-background-radius: 0;
}

Activity Rendering

The graphics view uses the canvas API of JavaFX. This is due to the complex nature of a Gantt chart and due to the large data volumes often observed inside of them. Directly rendering large quantities of activities into a bitmap is much faster than constantly updating the scene graph and reapplying CSS styling. FlexGanttFX implements a pluggable renderer architecture where renderer instances can be mapped to activity types, very similar to the way Swing was doing it.

The following code is an example of how to register a custom renderer for a given “Flight” activity type. Please note that the graphics view is capable of displaying activities in different layouts, hence the layout type must also be passed to the method.

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setActivityRenderer(
                Flight.class,
                GanttLayout.class,
                new FlightRenderer(graphics));

We usually also pass the graphics view to the renderer at construction time. This is needed as renderers will invoke a redraw on the graphics when any of its properties changes. This is very different to the Swing approach. This also implies that renderer instances should only be used for a single graphics view, the one that was passed to their constructor.

The following methods on GraphicsBase are used for working with renderers:

Drawing

Activity renderers have a single entry point for drawing, a method called draw(). This method is final and can not be overriden. Once invoked it will call various protected methods to perform the actual drawing. The call hierarchy looks like this:

• public final draw() …. calls …
  • protected ActivityBounds drawActivity()
    • protected void drawBackground()
    • protected void drawBorder()

Subclasses are free to override any of the three protected methods to customize the activity appearance. All drawXXX() methods have the same arguments:

ActivityRef<A> activityRef,  // the activity to draw
Position position,           // agenda layout only (first, middle, last, only)
GraphicsContext gc,          // the graphics context into which to draw
double x,                    // the location of the start time of the activity
double y,                    // the y coordinate (0 when drawn on row or line location)
double w,                    // end time location minus start time location
double h,                    // row or line height
boolean selected,            // is activity currently selected?
boolean hover,               // is mouse cursor currently hovering over it?
boolean highlighted,         // is activity currently blinking?
boolean pressed)             // is user currently pressing on it?

Default Renderers

The following table lists the various activity renderers that are provided by default.

Activity Bounds

Every activity renderer is responsible for returning an instance of ActivityBounds after drawing the activity. These bounds are an essential piece for the framework and many operations will only work properly if these bounds are valid. They are being used for editing activities, for hit-point detection, for laying out links, for context menus, and so on. The following table lists the attributes of the ActivityBounds class.

Please ignore the attributes overlapColumn, overlapCount, and the list overlapBounds. These are all used internally for agenda layout related operations.

Properties

All renderers define several properties that can be used to customize their apperance. Many of these properties are dependent on the “pseudo state” of the activity: hover, pressed, selected, highlighted. To make it easier to lookup the right color at the right time several convenience methods are available:

• Renderer: protected Paint getFill(boolean selected, boolean hover, boolean highlighted, boolean pressed);
  • Returns the color to use for the activity background depending on pseudo states passed.
• ActivityRenderer: protected Paint getStroke(boolean selected, boolean hover, boolean highlighted, boolean pressed);
  • Returns the color to use for the activity border depending on pseudo states passed.
• ActivityBarRenderer: protected Paint getTextFill(boolean selected, boolean hover, boolean highlighted, boolean pressed);
  • Returns the color to use for text depending on pseudo states passed.

Row Rendering

The system layer RowLayer supports pluggable renderers to customize the background of each row depending on the row type. In the tutorial we have seen that we can have Aircraft rows and Crew rows. For clarity these two rows could have different background colors. This is something that could be done with a row renderer.

Row Renderer

All row renderers have to subclass RowRenderer. This class defines a final public method called draw() that gets called by the framework. It then calls the protected method drawRow() which subclasses can override. A possible implementation might look like this:

public class AircraftRowRenderer extends RowRenderer<Aircraft> {

    public AircraftRowRenderer(GraphicsBase<?> graphics) {
        super(graphics, "Aircraft Row Renderer");
    }

    protected void drawRow(Aircraft row,
                           GraphicsContext gc,
                           double w,
                           double h,
                           boolean selected,
                           boolean hover,
                           boolean highlighted,
                           boolean pressed) {
        gc.setFill(Color.ORANGE);
        gc.fillRect(0, 0, w, h);
    }
}

This renderer can now be registered with the RowLayer like this:

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.getSystemLayer(RowLayer.class).setRowRenderer(
                    Aircraft.class, new AircraftRowRenderer());

Context Menu

There are two ways to register a context menu with the graphics view. The standard way by calling GraphicsBase.setContextMenu(ContextMenu) or by registering a context menu callback by calling GraphicsBase.setContextMenuCallback(). The advantage of the second option is that a parameter object of type ContextMenuParameter will be passed to the callback method. This parameter object contains the most relevant parameters that most context menus will require to let the user perform some kind of action on the graphics view.

Please note that a context menu callback will have precedence over a standard context menu.

Code Example

The following snippet shows an example of a context menu callback implementation. Here we simply add a menu item for each activity that was found at the mouse location where the context menu was requested by the user.

GraphicsBase<?> graphics = ganttChart.getGraphics();
graphics.setContextMenuCallback(param -> {
    ContextMenu menu = new ContextMenu();
    for (ActivityRef<?> ref : param.getActivities()) {
        Activity activiy = ref.getActivity();
        MenuItem item = new MenuItem("Move " + activity.getName());
        item.setOnAction(evt -> moveActivity(activity);
        menu.getItems().add(item);
    }
    return menu;
});

Row Headers

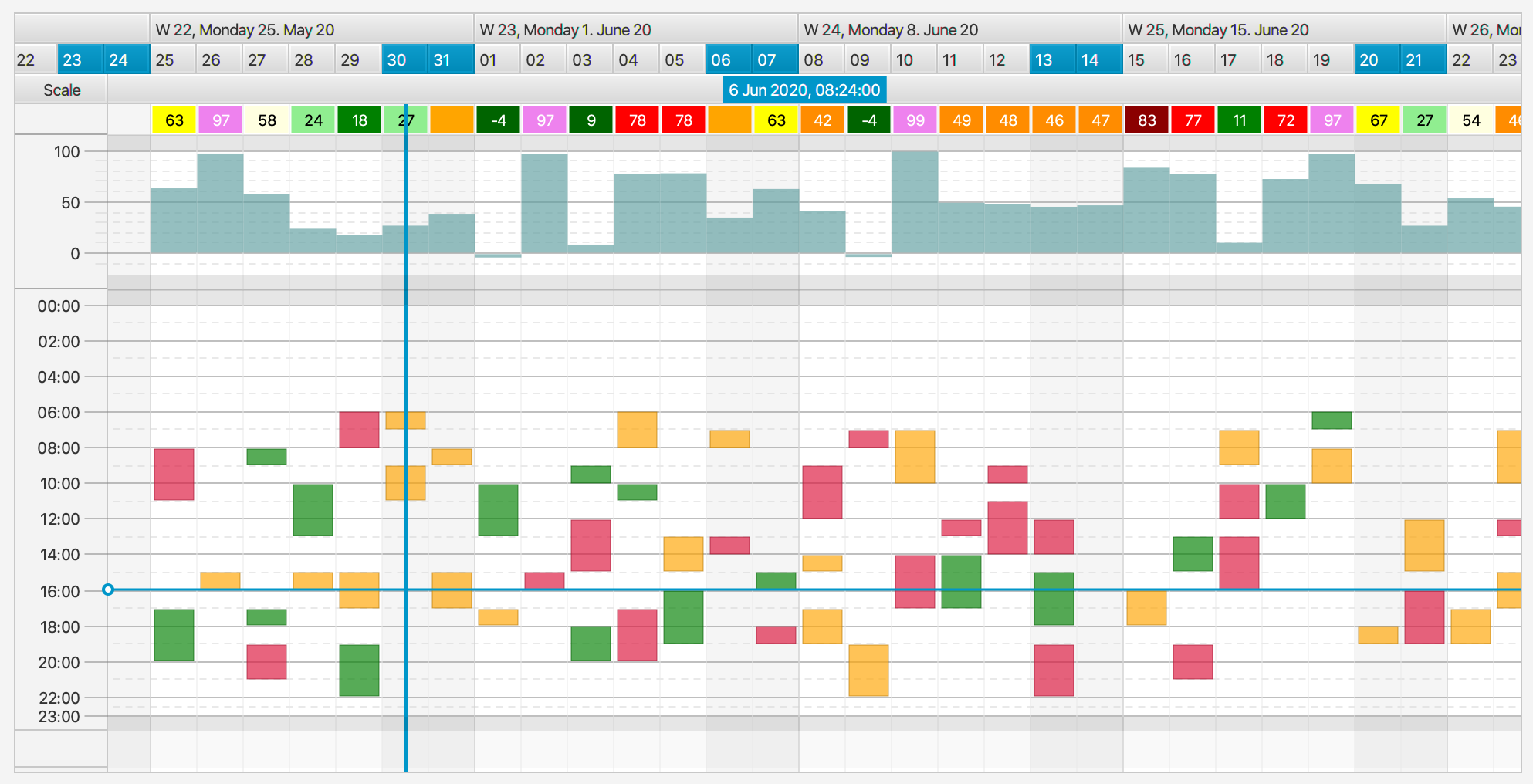

Each row in the graphics area can display its own header, which will be displayed on the left-hand side of the row. The header always stays in this place and does not scroll when the visible time range changes (e.g. when the user scrolls left or right).

The default row header that ships with FlexGanttFX knows how to display scales when the application uses chart or agenda layouts. The implementation of the default header can be found in the ScaleRowHeader class.

Custom row headers can be created by subclassing GraphicsBase.RowHeader. The item property will be updated whenever the row changes for which the header is used. Just like list or table cells the row header class is an extension of Label, which means that you can completely replace its content by calling setGraphics(Node node) and setContentDisplay(ContentDisplay.GRAPHICS_ONLY).

See also:

public void setRowHeaderFactory(Callback<GraphicsBase<R>, RowHeader<R>> factory);
public void setShowRowHeaders(boolean showRowHeaders);

Note: in older versions of FlexGanttFX the functionality for displaying a row header / scales was found inside the ScaleLayer class. With the introduction of the canvas buffer concept and scrolling via the translateX property it became necessary to change this because the scales were placed in all kinds of places, depending on the translateX property value.
