The Gantt chart control is using two nested master / detail panes (from ControlsFX). The first one contains the tree table view as its detail node and the second master / detail pane as its master node. The second master / detail pane shows the graphics view as the master node and a property sheet as the detail node. The following table lists the related methods:
Method | Description |
---|---|
setDetail(Node); getDetail(Node); |
Sets / gets the node that is being shown as the detail node of the secondary master detail pane. |
getPrimaryMasterDetailPane(); |
Returns the primary master / detail pane. This pane shows the tree table view as its detail and the secondary master / detail pane as its master. |
getSecondaryMasterDetailPane(); |
Returns the secondary master / detail pane. This pane shows the graphics view as its master and an optional node as its detail. |

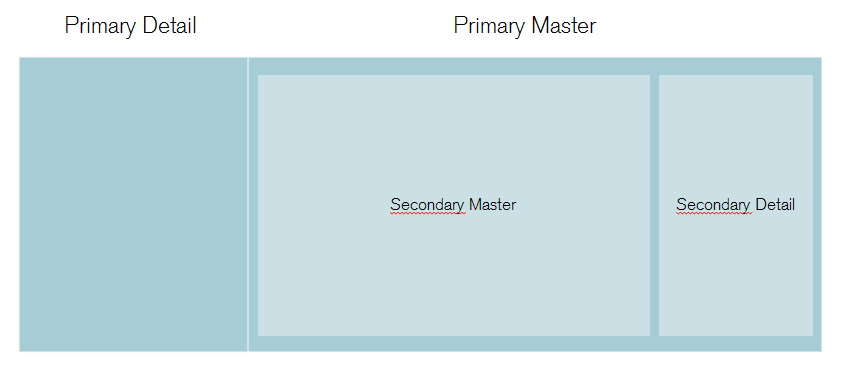

The following image illustrates the concept of two nested master / detail panes.
