Introduction
Each row and each inner line of a row are associated with a layout. The layout
influences several aspects during rendering and editing of activities. Additionally several of the
system layers used to draw the row background also utilize the layout information. The layout can be
set by calling Row.setLayout(Layout) or when using inner lines by returning them via the lines manager of the
row.
Layout Types
Three layout types are included in FlexGanttFX.
| Layout | Description |
|---|---|

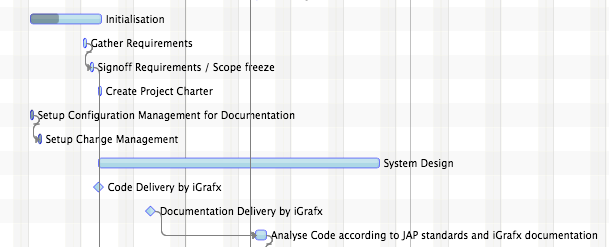

GanttLayout |
Lays out activities horizontally along the timeline. Positions are based on the start and end times of the activities. |

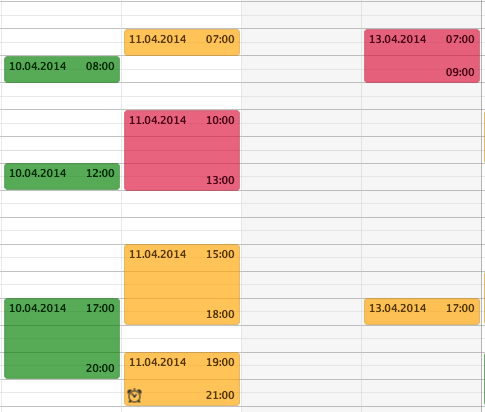

AgendaLayout |
Lays out activities vertically along a "local time" scale (0 - 24 hours). This makes activities look like calendar entries. |
ChartLayout |
Lays out activities as chart values. Activities can implement the ChartActivity or the HighLowChartActivity interface. |

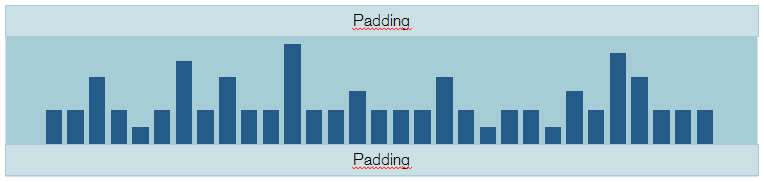

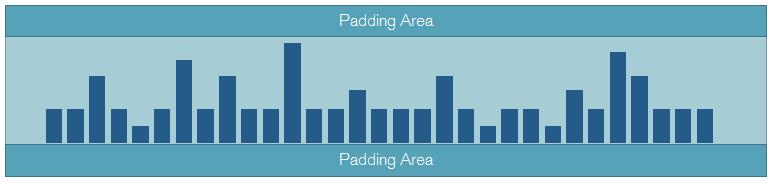

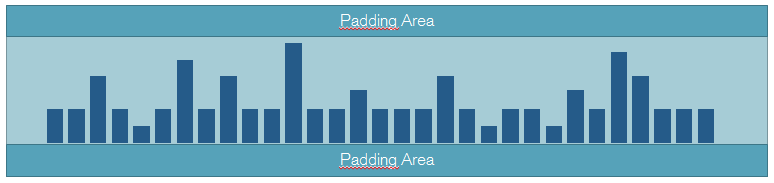

Padding
All layout types have a padding property. It is used to create a visual gap at the top and bottom of each row / line.
